5602 Tube Active tone control processor.

5602 is vacuum tube line processor adopting Nu-Tube by KORG.

The advent of the “NUTUBE” enabled to mount a vacuum-tube on API 500 series.

Please be satisfied Tube sound to connect with digital equipment.

It consists of vintage parts like a vacuum tube and trance as well as with metal can semiconductor and tantalum capacitor.

Conisis provide you high performance and mild sound of vacuum tube.

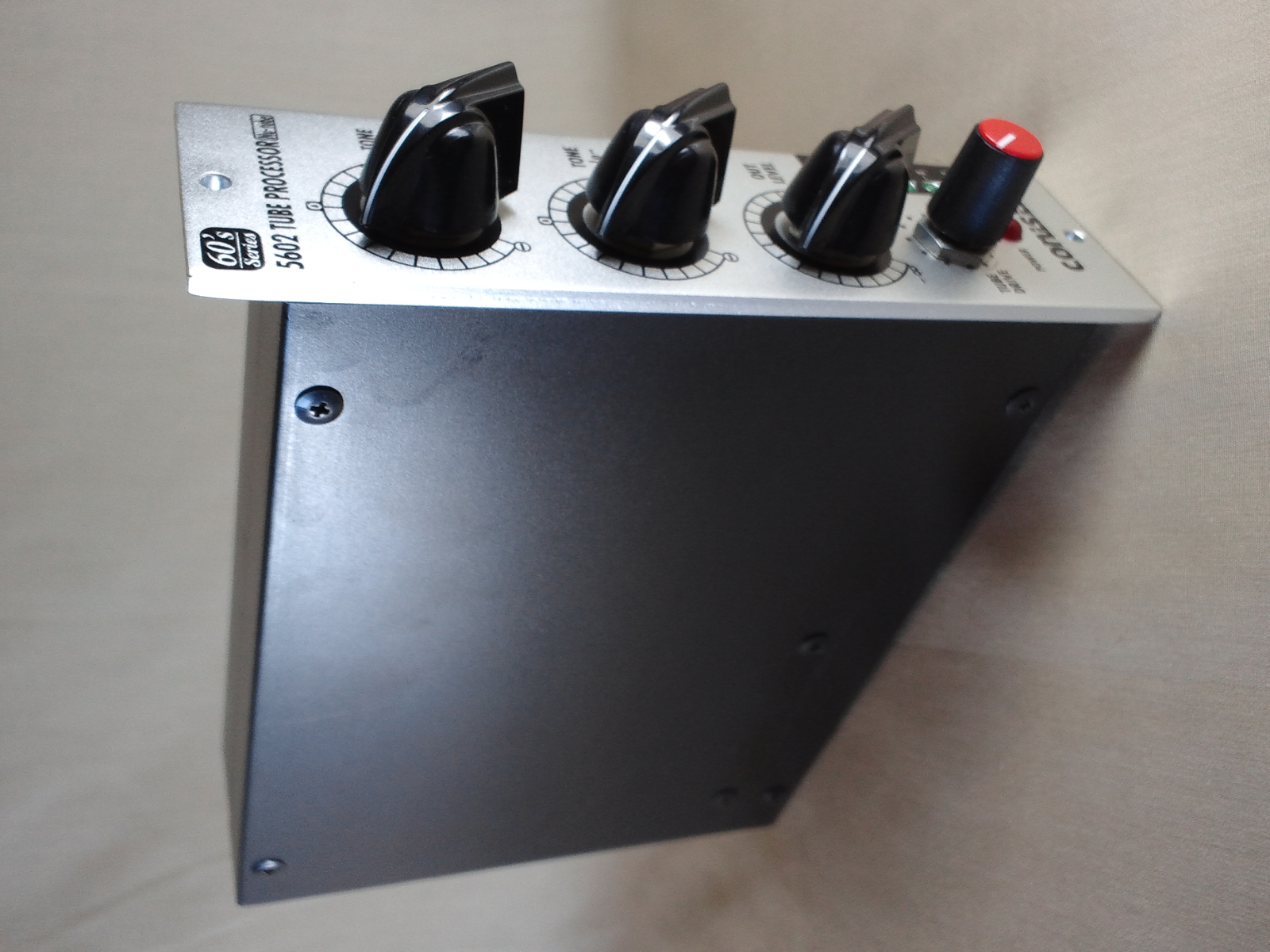

A small size vintage Tube Active tone control processor hit the streets

1. TONE HI
Control for high frequency

2. TONE LO
Control for low frequency

3. OUT LEVEL
Power conditioning knob

4. TUBE DRIVE
Variable bias currents of vacuum tube

5. OUT PUT LEVEL
Output level VU scale indicator

6.POWER INDICATION

INPUT impedance  10KΩ　
transformer balance
OUTPUT impedance  600Ω　
transformer balance
MAX POWER OUTPUT +34dBm
TONE contloll   HI/LOW
TUBE BIAS DRIVE CONTROLL
